App bundle concepts

Mach5 app bundles package a set of declarative resources so they can be validated, installed, upgraded, exported, and deleted as one unit.

Use bundles when an app needs more than one resource: an Application, dashboards, notebooks, workflows, connections, ingest pipelines, synthetic data plans, scripts, or supporting indexes.

What is an app bundle?

A bundle is a directory of YAML or JSON apply documents. The root document is a Bundle manifest. The remaining documents are the resources the bundle installs.

Example directory:

soc-triage/
  bundle.yaml
  applications/
    soc-triage.yaml
  dashboards/
    soc-triage-overview.yaml
    finding-evidence.yaml
  notebooks/
    incident-review.yaml
  workflows/
    create-finding-ticket-v1.yaml
  pipelines/
    github-audit-log.yaml

m5c walks the directory, sends the bundle.yaml document first, then sends the remaining documents as one multi-document apply request.

Bundle manifest

The bundle manifest is itself an apply document.

kind: Bundle
metadata:
  name: soc-triage
spec:
  bundle_version: 1.0.0
  description: SOC triage app with dashboards, notebooks, and workflows.
  references:
    - kind: Connection
      namespace: shared
      name: slack-prod

Manifest fields:

Apply document envelope

Every bundle member uses the same apply envelope.

kind: Application
metadata:
  name: soc-triage
spec:
  display_name: SOC Triage
  description: Review, enrich, and route high-priority findings.
  route: /apps/soc-triage

Envelope fields:

The namespace is not stored in the document. The target namespace comes from the apply request or CLI command.

Bundle apply vs ad-hoc apply

A request containing a kind: Bundle apply document is a bundle apply. A request without a bundle document is an ad-hoc apply.

Ownership

Bundle-owned resources are protected from accidental edits.

Bundle apply rules:

• missing resource: created and owned by the current bundle
• existing resource owned by the same bundle: updated
• existing unowned resource: requires adopt=true
• existing resource owned by another bundle: rejected
• existing bundle-owned member missing from the incoming bundle: pruned

Direct REST mutation of a bundle-owned resource returns a conflict unless an owner override is explicitly provided. The override does not bypass authorization.

Pruning

On upgrade, Mach5 computes the prune set:

existing owned members - incoming non-Bundle apply docs

Resources in the prune set are deleted in the same transaction as the bundle upgrade.

This keeps installed apps clean: removing a dashboard, notebook, or workflow from a bundle removes it from the target namespace on the next apply.

Validation pipeline

Bundle apply validates before execution.

The pipeline stops at the first stage with violations and returns diagnostics.

Execution semantics

If validation passes, Mach5:

1. creates the namespace if ensureNamespace=true is requested
2. creates or updates the bundle anchor row
3. applies member resources in dependency-safe order
4. stamps bundle ownership on touched members
5. prunes owned resources removed from the bundle
6. updates bundle status and metadata
7. commits the transaction

Results are reported in original document order even if execution uses dependency ordering internally.

Bundle status

A bundle resource tracks install state.

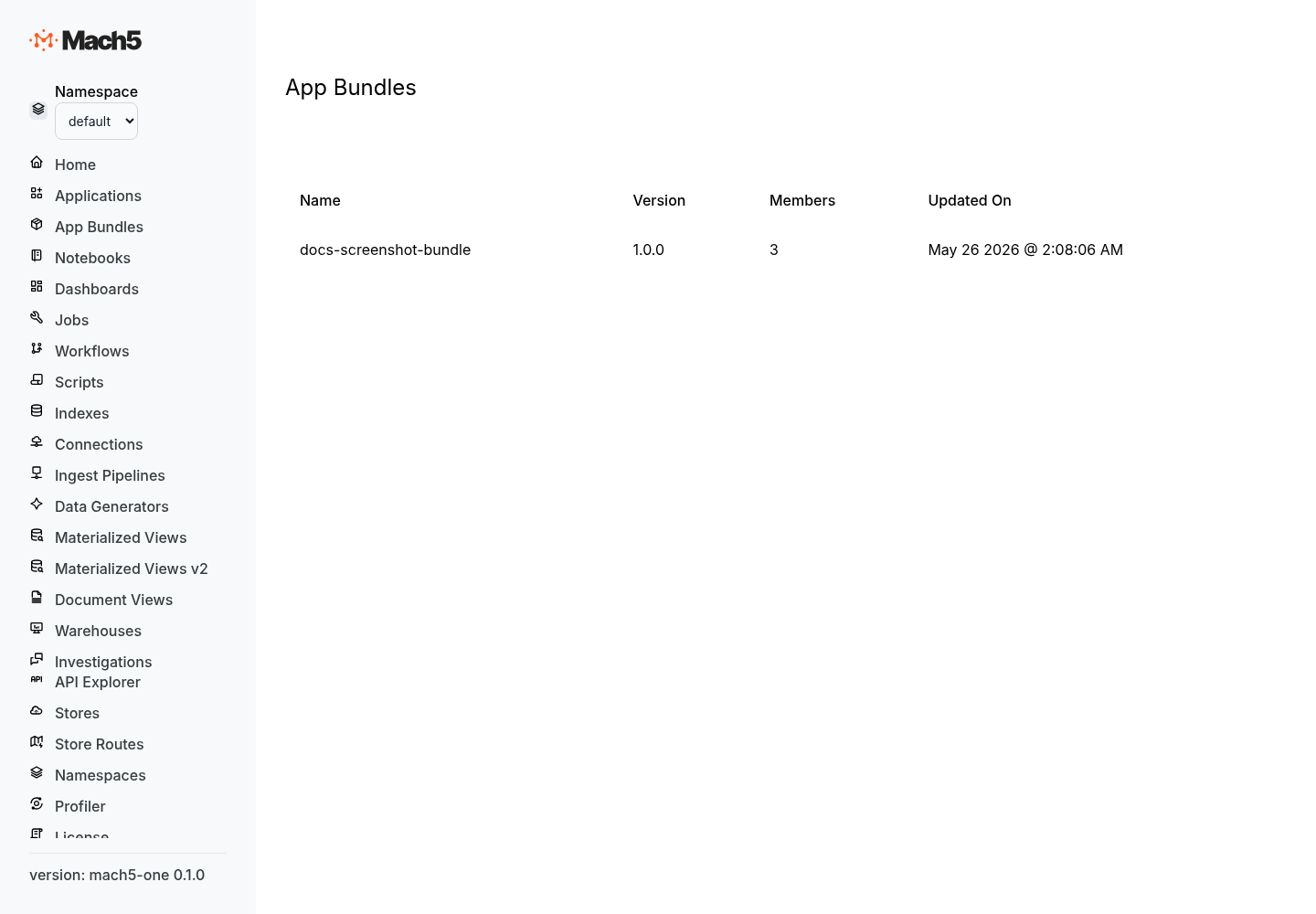

Bundle management routes

Implemented HTTP routes:

GET    /apis/namespaces/{namespace}/bundles
GET    /apis/namespaces/{namespace}/bundles/{name}

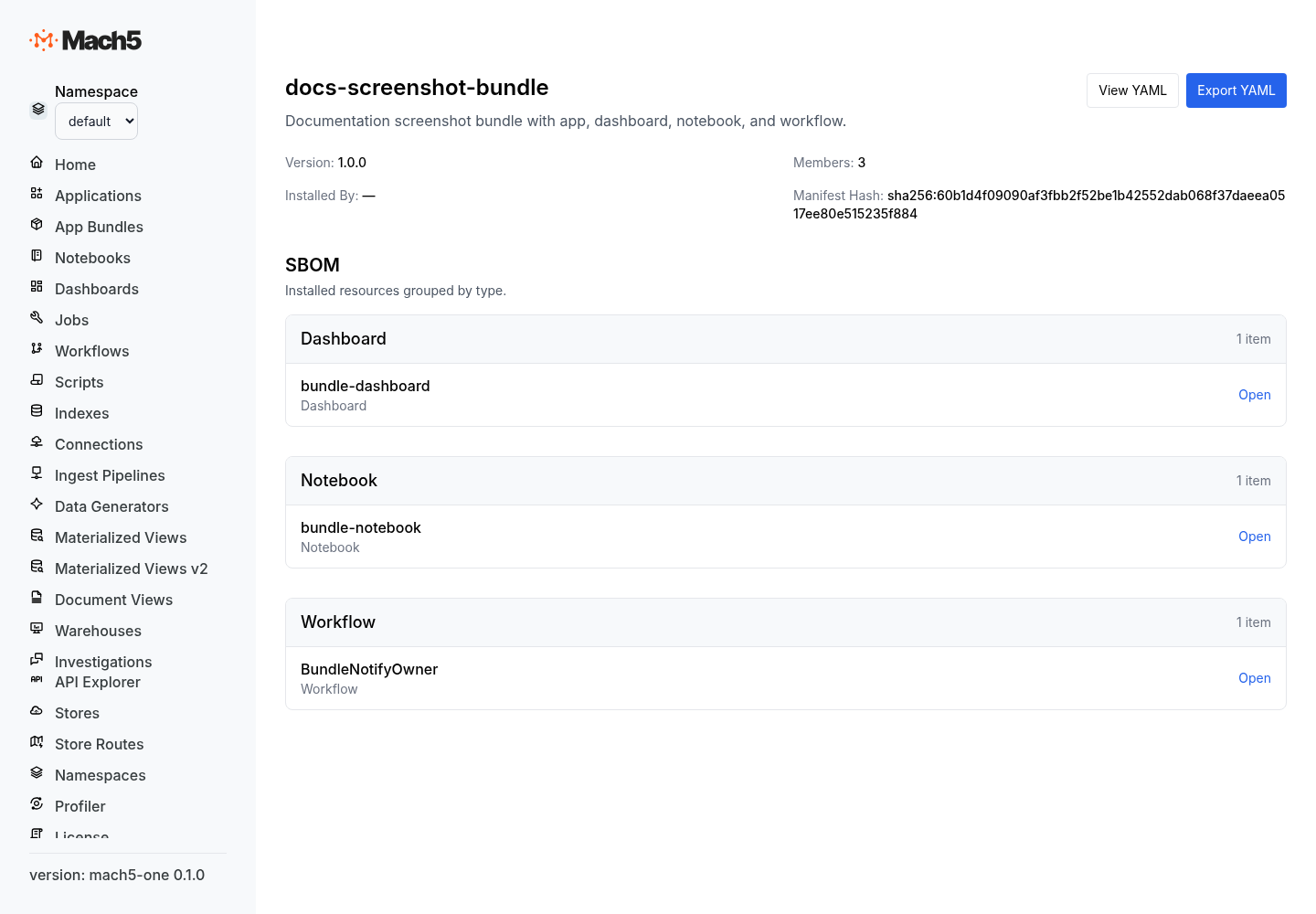

GET    /apis/namespaces/{namespace}/bundles/{name}/members
DELETE /apis/namespaces/{namespace}/bundles/{name}
GET    /apis/namespaces/{namespace}/_export

Deleting a bundle deletes all resources owned by that bundle and then deletes the bundle row.

CLI commands

m5c bundle apply <dir> --namespace <ns> [--ensure-namespace] [--adopt] [--dry-run]
m5c bundle validate <dir> --namespace <ns> [--ensure-namespace] [--adopt]
m5c bundle list --namespace <ns>
m5c bundle get <name> --namespace <ns>
m5c bundle members <name> --namespace <ns>
m5c bundle delete <name> --namespace <ns> [--yes]

m5c apply -f <file> --namespace <ns> [--ensure-namespace] [--adopt] [--dry-run]
m5c export <namespace> [-o <file>]
m5c export --all-namespaces -d <dir>

Bundle and app relationship

A declarative app is usually one member of a bundle. The bundle carries the app plus everything it needs to run.

Typical app bundle members:

• Application for the app shell, pages, models, actions, approvals, navigation, and assistants
• Dashboard resources for app views
• Notebook resources for investigation guides
• Workflow resources for Axon actions
• connection and ingest pipeline resources where the app owns the data path
• synthetic data or generation plans for demos and validation

For app specs, see Declarative apps concepts. For examples, see App bundle examples.
